Pool Heaters
Get More Enjoyment from your Pool or Spa
Don’t let a broken pool heater ruin your weekend. Franklin Lakes Pool keeps your system running smoothly with expert care and fast repairs.
Fast, Reliable Repairs
Energy-Efficient Installations
Weekly Heater Checks
Home   >  Pool Services   >  Pool Heaters
Get More Enjoyment in the Pool
There is nothing more frustrating than planning a party or even just having friends over and the pool heater is not working! When this happens, what do you do? Hire Franklin Lakes Pool Company for your weekly maintenance because we check the heater each and every time we’re there! If We find there is a problem, we will call and let you know and usually have it fixed before the weekend! If you haven’t, here are some things to check before you call a service company:
- Is the pool running? Check and make sure filter pump is on.
- Check that water is flowing by looking at the filter pressure gauge, if pressure is over 20 lbs, a backwash may do the trick.
- Is the gas valve turned on? Proper alignment is valve running in-line with gas pipe.
- Is electric on for heater? If heater is a milli-volt system and does not require electric, check to see if pilot light is lit. If pilot light is not lit, refer to inside of heater panel for instructions on how to light pilot.
- Is thermostat on heater higher than water temperature? If pool is connected to an automatic controller than make sure temperature setting there is also higher than water.
- If heater still does not work call a professional like Franklin Lakes Pool.
Franklin Lakes Pool is trained in all makes and models. If your pool heater does need a repair, we can have you up and running in no time! We specialize in new heater installation and equipment upgrades. All our heaters are energy efficient, deliver fast heat-up times, low operating costs, and long life. Rugged housings are built to withstand the elements, and compact, attractive designs blend into any environment.
Don’t hesitate to reach out by phone or pay us a visit.
Pentair Pool Heaters
High Performance Eco-Friendly Heaters

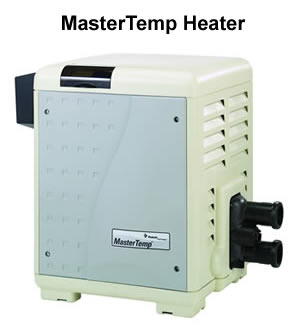

MasterTemp heaters offer all the efficiency, convenience and reliability features you want in a pool heater, plus a lot more. As easy to use as your home heating system, plus, user-friendly indicator lights make system operation and monitoring a snap. The compact design and super-quiet operation won’t intrude on your poolside leisure time. Heavy-duty (HD) unit with cupro-nickel exchanger stands up to the harshest of applications, like low pH, high flow or heavy use
- Heats up fast so no waiting before enjoying your pool or spa
- Best-in-class energy efficiency
- Manual gas shut-off when service is required
- Eco-friendly MasterTemp Heater is certified for low NOx emission and outperforms industry standards
- Rotating digital display allows for easy viewing
- Tough, rustproof exterior handles the heat and weathers the elements
High Performance Eco-Friendly Heaters

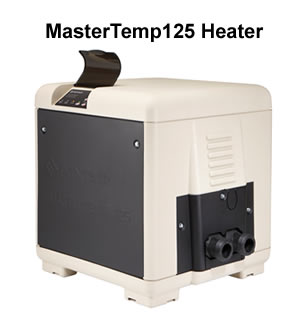

The MasterTemp 125 Heater provides energy-savings and advanced operating features that were only available from much larger heaters. With its revolutionary pre-mixed gas combustion technology, the MasterTemp 125 Heater offers 83% thermal efficiency, the highest in its class. The advanced digital display/controller provides more information and better control. MasterTemp 125 Heater is so compact and lightweight, it can be shipped single parcel shipping.
- High-performance, affordable heater with premium features
- High-performance, affordable heater with premium features
- 1-1/2 in. Plumbing connection — ideal for smaller bodies of water, including aboveground pools, spas and inground pools up to 15,000 gallons
- Pre-mixed combustion technology for ultra-fast heat up
- Easy-to-use digital display/controller
- Certified for low NOx emissions
- Available in natural gas or propane gas
- Lightweight: 80 lbs. — easy to handle and ship
- Corrosion and UV-resistant enclosure
- 3/4 in. gas line up to 50 ft. from source
High Performance Eco-Friendly Heaters

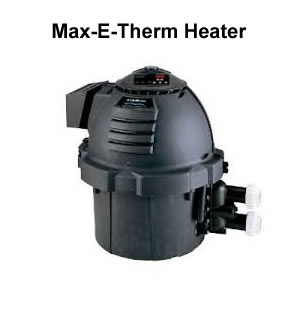

For indoor or outdoor installations on pools and spas. Features include an LED temperature readout with dual thermostat controls, temperature safety lockout, and 6-position control panel. PMG burner technology requires no outdoor draft hood. Proven Dura-Glas Resin provides rust-proof construction. Heavy-duty (HD) unit with cupro-nickel exchanger stands up to the harshest of applications, like low pH, high flow or heavy use.
- Lightweight – Lightest heater in its class
- Best-in-class – energy efficiency
- Compact Design – Ideal for retro-fit installations
- Easy to Switch – Change gas sources with installation of separate orifice
- Environmentally Friendly – All units are low NOx
- Rustproof Housing – Sleek, matte black enclosure is made of Dura-Glas™ – an exclusive Sta
- Rite material that handles the heat and weathers the elements
- Lower Operating Costs – 84% efficiency rating – rated 1st in its class for highest energy efficiency
- Custom or Retrofit – Direct-connects to Sta-Rite System 3® Mod Media™ Filter or easily fits other systems
Hayward Pool Heaters

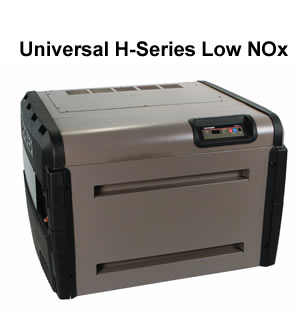

Universal H-Series Low NOx heater has an industry-leading thermal efficiency and complies with all current California air quality emission standards. The low NOx emission makes it a perfect choice for the environmentally concerned pool owner.
Its hydraulic performance also saves energy by reducing the circulation time of the pump and it can raise the temperature of an 800 gallon pool 30 degrees in less than an hour.
Other advances include stainless steel burners, corrosion-resistant heat exchangers and insulated Fire Tile combustion chambers. This traps the heat unlike other forms of insulation delivering the highest degree of performance from every BTU. Equipped with an LED control panel, it monitors heater performance for added convenience and maximum comfort with minimum effort. The ignition system delivers dependable lighting and reliable operations with just a touch of a button. The forced draft system constantly moves air through the combustion chamber to eliminate all outside weather variables affecting heating performance, such as wind conditions, eliminating the need to install a high-wind stack.

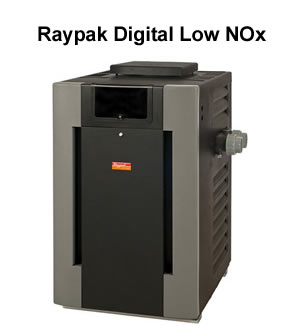

Raypak Pool Heaters
PolyTuf Textured Powder Coating
The Raypak gas heater has a polyester-coated,non-corrosive cabinet that is more durable than solventborne-and waterborne-coated metal cabinets. Every piece of sheet metal goes through a 7-stage wash system. making certain the power paint has a perfect bond. Underneath the tough, yet beautiful finish you will galvanized metal that offers superior rust prevention and years of durable service.
Wind-Resistant Design
No need for fans to combat drafting problems under normal conditions. This heater is designed to draft naturally in outdoor installations with its exclusive low-profile design. It is so thoughtfully and carefully designed it actually protects itself from the things that tend to stifle ordinary pool and spa heaters. It delivers uninterrupted heating performance regardless of falling leaves, wind, airborne debris, rain, downdrafts, updrafts, sleet, snow, etc.
Digital Controls
The digital controls provide simple setup, simple programming, and easy-to-understand diagnostics. The unit only generates a pilot when needed.
Cast-Iron Headers
Rugged cast-iron headers with porcelainized waterways provide the strength that tough ASME requirements demand.
All-Copper-Fin-Tube Heat Exchanger
The fin tubes of the heat exchanger are each made from a single piece of extruded copper. This integral-fin design allows maximum heat transfer to be attained and maintained. Cupro-nickel is also available as an optional upgrade.
Stainless Steel Tube Sheet
Stainless steel tube sheets allow for a completely nonferrous waterway, leaving your pool truly rust-free.
CPVC 2″ Water Connections
Standard with every Raypak is a set of 2″ slip-fit CPVC water connections to make your installation secure and effortless.
Condensation Protection
The Unitherm Governor inside the header helps reduce condensation from low inlet water temperatures. It automatically regulates the water flow to help keep the water temperature in the heat exchanger above 105°F. Both water temperature and water flow rate are controlled to eliminate condensation, sooting, and scale build-up that can shorten heater life.
High Flow Rates
The Raypak gas heater comes with an automatic bypass built into the header. You’ll find that the heater is capable of handling water flow at a rate up to 125 GPM.
Burner Tray
Every burner tray is built to last, from the stainless steel burners to the aluminized metal used in the heat sensitive areas. Innovative design allows for the easy removal of the tray and burners for servicing.
Fire Tile
A ceramic fiber combustion box keeps your heater running efficiently while keeping the outside jacket cool. By using this space-age material the heater won’t retain residual heat after it is turned off, allowing it to be installed without the use of costly metal heat sinks.
Fuel-Efficient
Energy-smart Raypak heaters consistently achieve the highest efficiency ratings. They exceed all federal and state standards
